AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig

Name: AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig
Brand: Hwashi
Price: 1 USD

Wholesale AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig from china suppliers

Brand Name : Hwashi

Certification : CCC,CE,ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Delivery Time : 15 work days

Packaging Details : Wooden packaging

Name : industrial robot arm

DOF : 6

Driving Mode : AC servo driving

Effective Load (kg) : 6/8

Repeat Positioning Accuracy (mm) : ±0.05

Motion Range (°) : ±360

Max Speed (°/S) : 450

Moving Radius (mm) : 1400/1950

Machine Weight : 180

After Warranty Service : Field maintenance and repair service

Contact Now

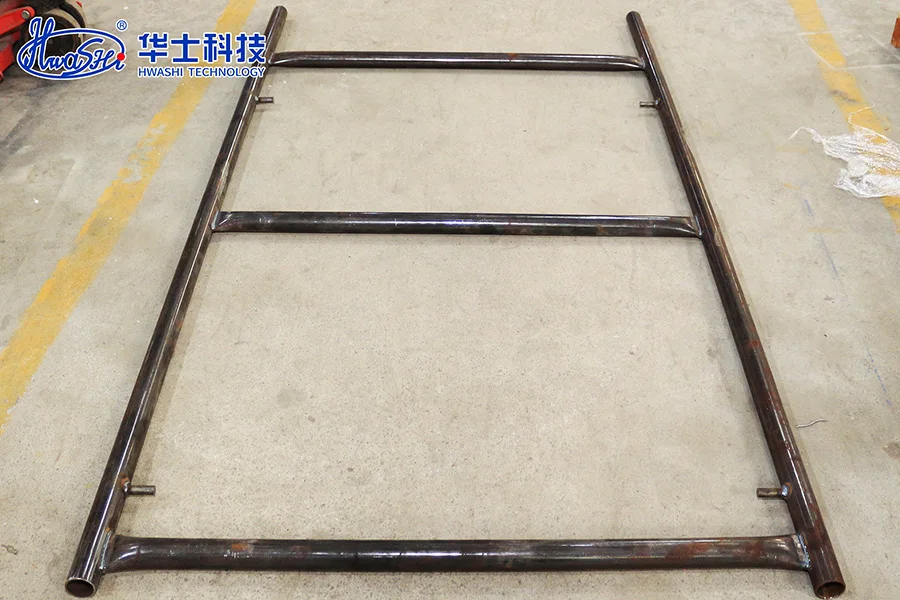

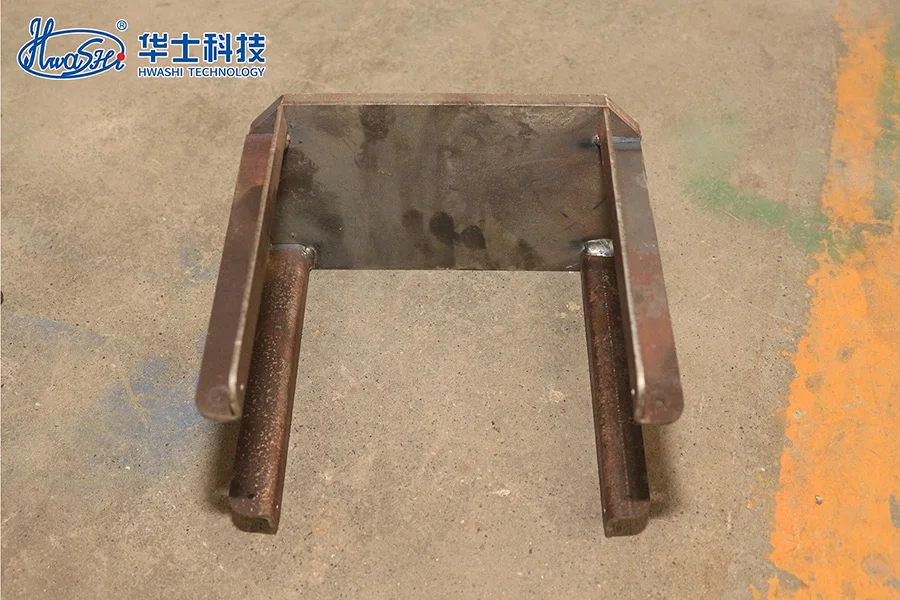

Hwashi Automatic welding robot arm for scaffolding,Mig tig welding robot

Advantages of Robots

1. Lower labor cost

2. Increase production efficiency

3. High product quality

4. Enhance enterprise competitiveness.

5. Easy to learn, easy to operate

APPLICATION/Industrial robot arm

The robot arm is widely used in Welding, Grinding, Painting, Spraying, Pickup and place, loading and unloading, stacking, transferring,transportation,etc.

AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig

Parameters of Industrial robot arm

Model		HS-R6-08	HS-R6-10	HS-R6-20	HS-R6-50	HS-R6-165
DOF		6
Driving Mode		AC Servo Driving
Effective Load		8KG	10KG	20KG	50KG	165KG
Repeat Accuracy		±0.05mm
Working radius		1400mm	1589mm	1595mm	1950mm	2483mm
Weight		180KG	180KG	290KG	600KG	1300KG
Motion Range(°)	J1	±170	±170	±170	±180	±180
	J2	±120~-85	±120~-80	±132~-95	±130~-90	±80~-60
	J3	±85~-165	±85~-165	±73~-163	±75~-210	±80~-190
	J4	±180	±180	±180	±360	±360
	J5	±135	±135	±133	±115	±115
	J6	±360	±360	±360	±360	±360
Max Speed(°/s)	J1	130	130	147	158	100
	J2	130	130	100	149	90
	J3	130	130	135	130	104
	J4	270	270	300	215	144
	J5	170	170	198	251	160
	J6	455	455	194	365	215
Power		4KVA	4KVA	6KVA	14KVA	31KVA
Voltage		380V or 220V
Frequency		50Hz or 60Hz

Product Tags:

6 DOF Automatic Welding Robots

AC Servo utomatic Welding Robots

CCC Industrial Welding Robot

AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig Images
